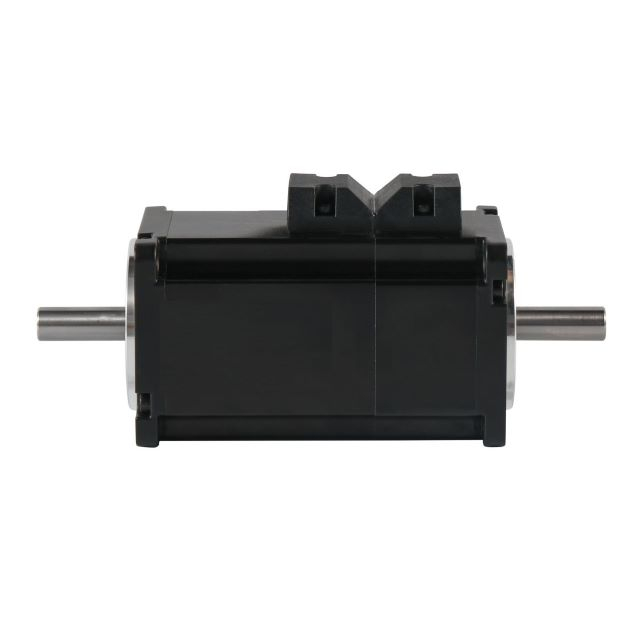

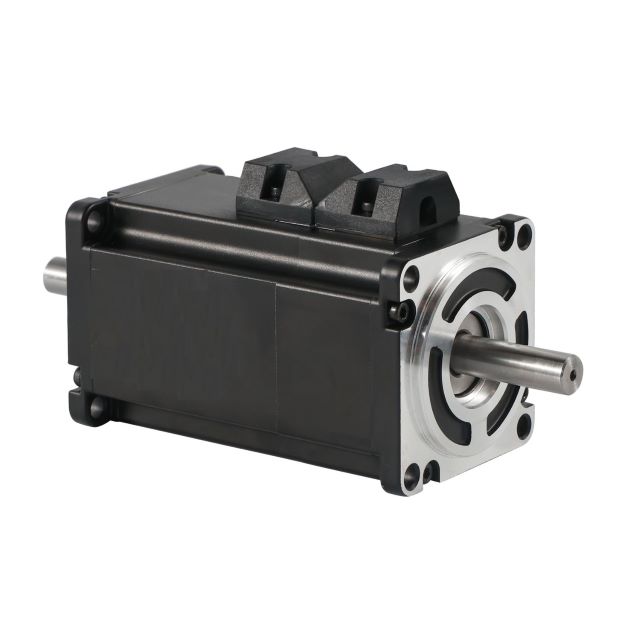

Low voltage dual output shaft servo motor

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
A dual axis servo motor is a type of motor that can control two axes simultaneously, with characteristics such as high precision, high speed, and high reliability. Its structure includes two parts: a motor and a servo controller, which achieve synchronous control between multiple axes through the servo controller

Application scenarios
Dual axis servo motors are widely used in mechanical manufacturing, automation and other fields, including CNC machine tools, packaging machinery, injection molding machinery, etc. Its high precision, high speed, and strong reliability enable it to meet the requirements of high precision, high efficiency, and high stability in the production and manufacturing field
  • SM060R20A15H4HFBQE

  • tig

  • 850151

Availability:
Quantity:
Technical indicators

Rated output power150W
Number of poles10P
rated voltage24VDC
Rated speed1500r/min
Rated torque1.27N.m
Rated Current9.2A(rms)
Working hoursContinuous
Heat resistanceClass F
Body colorBlack
Cooling methodNatural cooling
Vibration levelV15
Connection methodDirect connection
Installation methodFlange installation
Excitation methodPermanent magnet
Protection methodFully enclosed ,self-cooling IP54 (except shaft penetration)
Rotation methodCounterclockwise rotation(CCW) as seen from the extension end of the motor shaft
